CA9G5323 9G-5323 9G5323 Seal Group Duo Cone For C-A-T Dozer 834B Tractor 631E

Brand Name : SUNCAR

Model Number : CA9G5323 9G-5323 9G5323 Floating Oil Seal

CertifiC-A-Tion : ISO9001

Place of Origin : CN

MOQ : Accept trial order

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 550 Sets Per Week.

Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)

Packaging Details : PP Bag Inside,Carton Box Outside.

Brand name : SUNCAR

Part number : CA9G5323 9G-5323 9G5323

Feature : Leakage-proof, Excellent dimensional stability, Abrasion resistant, Good air-tightness

Key words : Floating seal;Face seal;Combination seal;Seal group

Compatible equipment : Cold Planer;Excavator;Logger; Pipelayer ;Soil Compactor ;Track Feller Buncher;Track Loader ;Track-type Tractor;Wheel Dozer

Material of seal : 100cr6/Gcr15/E52100/534A99/SUJ2

Metal hardness : 58-62HRC/62-68HRC

Material of O-Ring : NBR/FKM/Silicone/HNBR

One set : It consists of two metal seal rings and two rubber seals

Life : 3000-8000 Hours

Fits brand : C-A-T

Process of Seal : Forging & Casting

Contact Now

CA9G5323 9G-5323 9G5323 Seal Group Duo Cone for C-A-T Dozer 834B Tractor 631E

Description: Floating Seals also called as Lifetime Seals,Mechanical Face Seals,Duo cone Seals, Heavy Duty Seals and Toric Seals.

Product name CA9G5323 9G-5323 9G5323 Seal Group Duo Cone for C-A-T Dozer 834B Tractor 631E
Brand SUNCAR
Fits brand C-A-T
Name Floating seals; Heavy duty seal; Seal group; Duo cone seal; Drift oil seal ring; Floating oil seal
Part number CA9G5323 9G-5323 9G5323
Metal hardness 58-62HRC/62-68HRC
Material of seal 100cr6/Gcr15/E52100/534A99/SUJ2
Material of O-Ring NBR/FKM/Silicone/HNBR
Feature

Higher-toughness/Wear resistance/High&low temperature resistence
Function Leakage-proof, Excellent dimensional stability, Abrasion resistant, Good air-tightness
Supply ability 550 sets per week
Transport mode

By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
Original place Guangdong, China (Mainland)
Loading port Huangpu port,China
C-A-Tegory Mechanical face seal
Avaliability In stock

CertifiC-A-Tion

 ISO9001
Payment ways

Western Union, L/C, T/T, Money Gram, Paypal
Compatible equipment Landfill compactor;Load haul dump;Soil compactor;Truck;Wheel dozer;Wheel loader;Wheel scraper;Wheel tractor
Delivery details 3-7 days after payment received(Public Holiday Excluded)
MOQ Accept trial order
Models Landfill compactor 826C
Load haul dump R2900 R2900g R3000H
Soil compactor 825C
Truck 777 785
Wheel dozer 834B
Wheel loader 988B 988F
Wheel scraper 631E 633E 637E 637G 657E
Wheel tractor 631E 637E 651E 657E C-A-T
Type Floating seal
AppliC-A-Tion C-A-T consturction machinery equipment;Tractor;Construction Resell store;Repair Store

Standard or nonstandard

 Standard

Metal Material Details:

Material Gcr15/100Cr6 15Cr3Mo
Surface smoothness ≤Ra0.2um 6.3~12.5um
Workface smoothness ≤Ra0.015um ≤Ra0.1um
Pressure loading ≤Ra0.15MPa ≤Ra0.3MPa
Forging line speed 2m/s 3m/s
Temperature range -100℃~200℃ -40℃~160℃
Hardness 58-62HRC 62-68HRC
Lifetime 3000hours 5000hours

Rubber Washer Material:

Material NBR FKM SILICONE
Hardness 60°~65° 72°~78° 60°~65°
Minimum tensile strength 11MPa 11MPa 10.6MPa
Minimum elongation 300% 260% 400%
Permanent deformation 12% 25% 8%
Temperature range -40℃~+120℃ -30℃~+250℃ -49℃~+230℃

Heavy duty static and dynamic sealing technology is concerned with providing sealing solutions for machinery appliC-A-Tions in which conventional

seal lack the required durability.


The drive mechanisms for tracked vehicles and construction machinery,or the power transmission equipment for conveyor systems,sand

conditioning plant,concrete and cement mixers,mining machinery and similar heavy plant are subjected to extreme abrasive stresses in the

environments in which they work.


Failures can severely disrupt operations,and repairs are very costly.


Our metallic mechanical face seals have served well in such arduous conditions for years.


Robust and efficient,they guarantee customers high serviceability,durability and maximum productivity of their equipment.

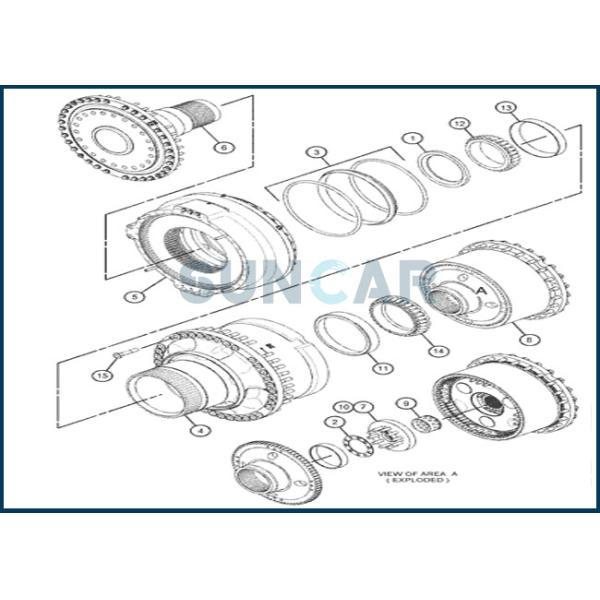

Parts for your D4D Track-Type Tractor:

Pos. Part No Qty Parts name
1 5V-5856 [1] SPACER
2 8K-0066 [1] SHIM (0.112-IN THK)
3 9G-5323 [1] SEAL GP-DUO-CONE
4 186-8808 [1] HOUSING-SPINDLE
5 386-3413 Y [1] BRAKE GP-SERVICE & PARKING
6 388-4764 [1] SPINDLE
7 463-6115 [1] RING
8 479-4080 Y [1] DRIVE GP-FINAL
9 479-4083 [1] SPACER
10 031-3185 [10] BOLT-12 POINT HEAD (5/8-11X3-IN)
11 107-7089 [1] CUP-BEARING
12 1P-9593 [1] CONE-BEARING (TAPERED ROLLER)
13 1P-9594 [1] CUP-BEARING (TAPERED ROLLER)
14 3D-0294 [1] CONE-BEARING
15 9K-7807 [36] STUD
Y SEPARATE ILLUSTRATION

CA9G5323 9G-5323 9G5323 Seal Group Duo Cone For C-A-T Dozer 834B Tractor 631E
